Quick answer: what the element does and why a pro should test it

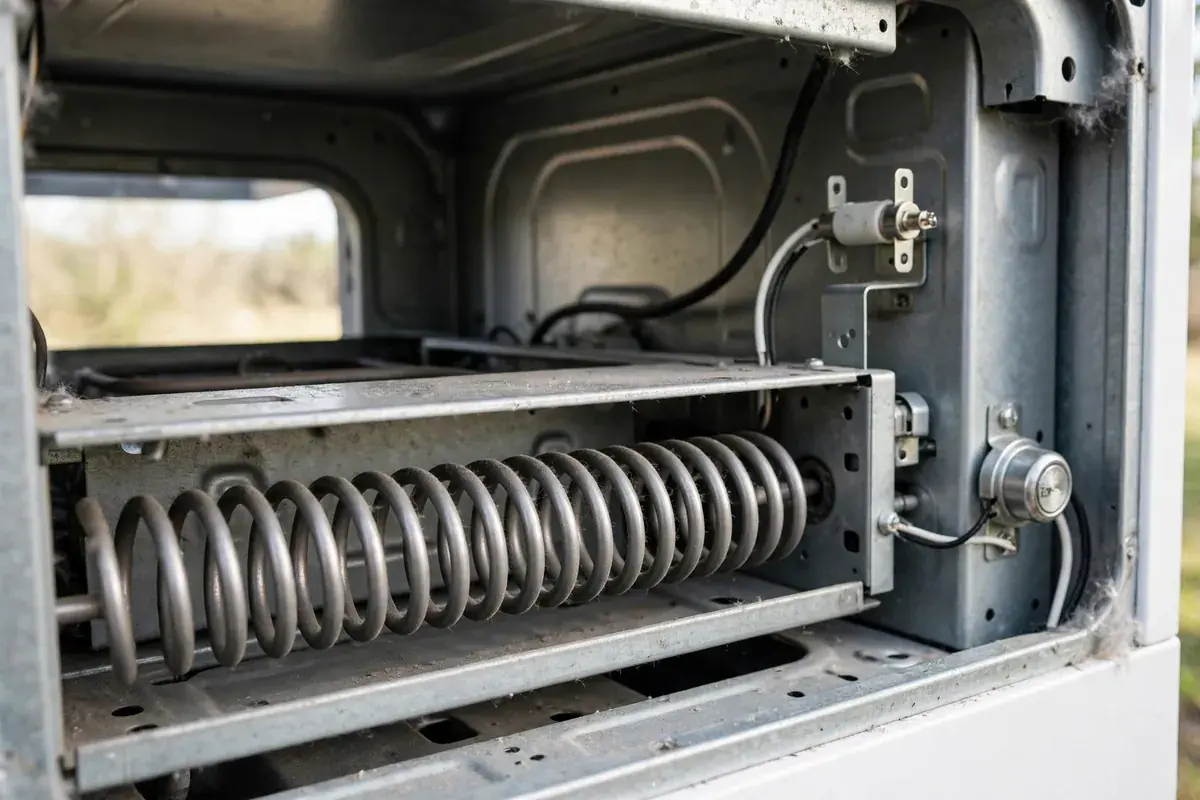

The element is a coil of nickel-chrome wire that gets hot when current passes through it, according to PartSelect. It sits in a metal housing, usually behind the back panel or near the base, depending on the model.
It needs a 240 volt supply. Sears Home Services notes that a dryer receiving only 120 volts still runs the motor but will not heat. Gas dryers have no element at all, since they light a burner instead.
Testing it means opening a dryer wired to a 240 volt circuit. So the meter-free checks come first and a technician second.
Bad dryer heating element symptoms, and the parts that mimic them
The main sign is simple: the drum turns, the clothes come out damp and cool, and cycles run long. The trouble is that other parts cause the same picture. Hunker says the coil eventually breaks. But also notes that many other electrical parts could stop a dryer from heating.
Here are the likely causes, in the order a technician usually thinks of them:

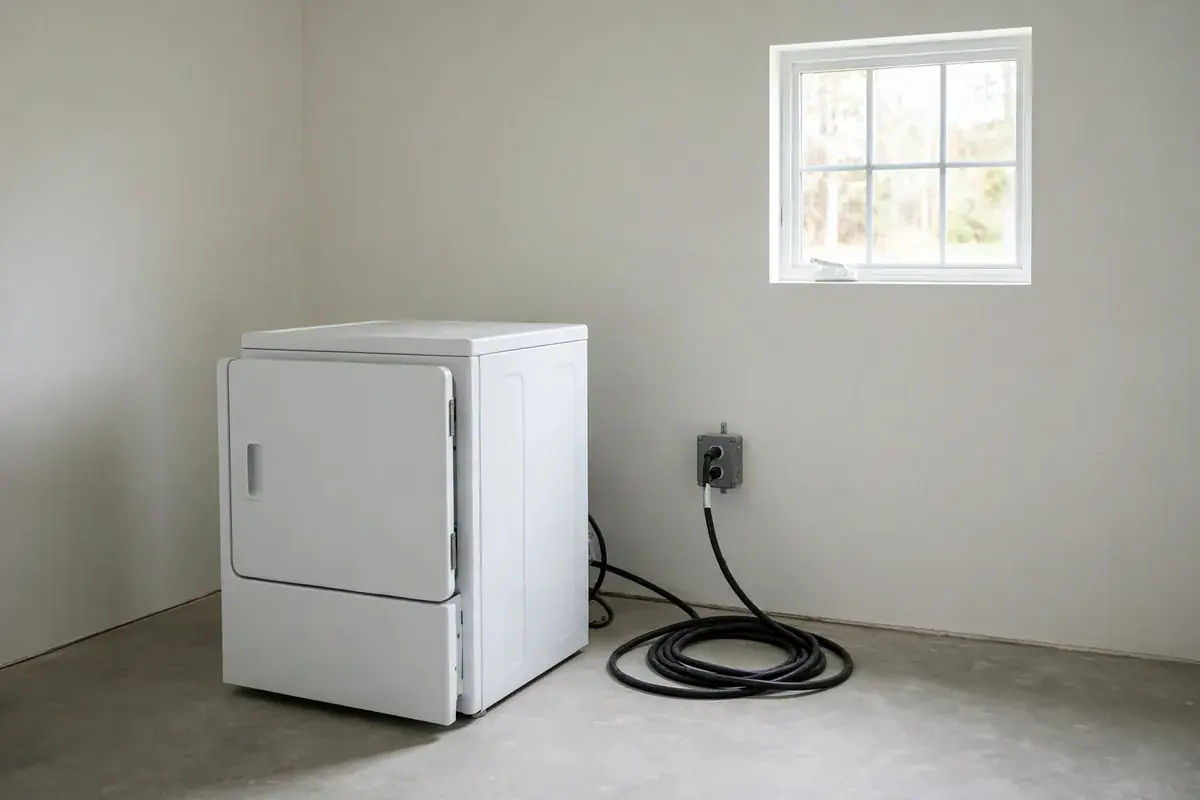

- Power. A half-tripped double breaker, a loose plug or a damaged cord.
- Thermal fuse. A one-time safety part that opens when the dryer overheats.
- Thermostats. The high-limit and operating thermostats.
- The element. A broken or burned coil.
- Timer, control or wiring. Less common, harder to find.
Why the element burns out: heat cycles and a restricted vent
Repeated heating and cooling weakens the wire, and Hunker says that is what eventually breaks the coil.
Dryer heating element failure often has a second cause behind it. Sears Home Services reports that blown thermal fuses are often caused by lint-clogged exhaust vents. If a fuse or element failed once, ask what the vent looks like before you order a part.
How to test dryer heating element problems safely without a meter
Skip anything that needs a screwdriver. These steps are safe for most households:
- Check the breaker. Make sure the double breaker is fully on, and reset it once if it is not.
- Check the plug. Confirm the cord is seated and undamaged, and skip extension cords.
- Empty the lint screen. Pull out the lint and look for a film or clog.
- Check the outdoor flap. Run the dryer and look for the flap opening and moist air leaving.
- Run a timed dry. Start a high heat timed dry for about ten minutes and feel whether the air at the hood is warm.
- Stop and call. If the air stays cool, unplug the dryer and phone a technician.
What a technician checks when the dryer runs without heat
Dryer element continuity test and the parts checked beside it
With the power off, the technician tests the element for continuity with a meter. Sears reports a reading near 15 ohms on its example and treats no continuity as a broken element. But the right figure depends on the model. The thermal fuse, high-limit thermostat and operating thermostat are tested the same way. Any of them can produce the same symptom.
Power at the terminal block is checked first. The vent is checked last. A new part in a restricted vent can fail again.
When to stop and call a technician instead of opening the dryer
- You smell burning, see scorch marks or find a damaged cord.
- The breaker trips again right after you reset it.
- You are unsure which wires are which. Or the job needs the outlet or breaker panel. Household wiring is electrician work, as one parts site notes.
- The dryer is gas, and you smell gas. Leave the home and call 911 and the gas utility.
For electric dryers that simply do not heat, our dryer repair page explains what a visit includes.
Repair or replace when the element fails
An element is a repairable part. The repair makes sense on a dryer in decent shape. Two questions decide it: how old is the dryer, and did the vent cause the failure? One parts guide suggests comparing repair cost to replacement value past fifteen years.
Repeated failures of the same heat part point to the vent, not bad luck. Ask for the estimate first and compare it, and be wary of a repair that leaves the vent untouched.
Preventing the next failure: lint screen, vent and airflow
Clean the lint screen every load. UL's November 2023 article recommends having the exhaust vent inspected and cleaned annually. Our dryer vent cleaning page covers what that visit looks like.
Dryer not heating in Shreveport LA? Here is who to call
Washing Machine Repair Shreveport serves Shreveport LA with local technicians for electric and gas dryers. If the checks above did not help, the dryer repair page explains how a call goes. The home page lists everything we handle. Nearby communities are on the service area page.
The estimate is free, with no obligation, and a person answers.
UL says lint in the vent drives most dryer fires, and heat controls guard against it
In an article dated November 29, 2023, UL Solutions gave yearly dryer fire figures. It reported about 15,600 structure fires, 400 injuries and 15 deaths. Most start when lint caught in the vent heats until it ignites. NFPA lists failure to clean in 33 percent of dryer fires.
The article does not discuss element failure. So we do not tie one to the other. The tension: the same heat that dries clothes burns whatever is in the vent. A careful technician checks the vent and the thermal fuse, not just the element. The lesson: a dryer that stops heating is asking you to look at airflow too.
Questions Shreveport households ask about a dryer that will not heat
How do I know if the element is bad?
The usual sign is a dryer that tumbles normally while clothes stay damp and cool. A bad element is one of several causes. So a meter test is the only certain answer. Call Washing Machine Repair Shreveport in Shreveport if the safe checks do not bring the heat back.
Can I test the element without a multimeter?
Only partly. You can check the breaker, plug, lint screen and vent flap, and feel whether warm air reaches the outdoor hood. Looking for a broken coil needs the back panel off, a job for someone comfortable with 240 volt appliances. Call (318) 858-7194 if unsure.
Why does my dryer run but not heat?
A dryer that runs without heat most often has a half-tripped double breaker. Other causes are a blown thermal fuse, a bad thermostat or a failed element. A clogged vent can blow the fuse. Washing Machine Repair Shreveport can sort the likely cause by phone before a visit in Shreveport.
Does a gas dryer have a heating element?
No, a gas dryer heats with a burner lit by an igniter. So the parts to check are the igniter, flame sensor and gas valve coils. If you smell gas, leave the home and call 911 and the gas utility. Our dryer repair page covers both fuel types.
What ohm reading should a good element show?
It depends on the model. Sears Home Services gives a reading near 15 ohms on its example and treats no continuity as broken. Do not guess from a number you found online. A technician compares the reading to the specification for your dryer.
Can a clogged vent damage the element?
A clogged vent most often blows the thermal fuse first. But it also keeps the dryer hotter than designed, which is hard on all the heat parts. After any heat part fails, ask for the vent to be checked. Washing Machine Repair Shreveport offers dryer vent cleaning in Shreveport.
Is it safe to keep using a dryer that does not heat?
If it only fails to heat, the risk is mostly damp clothes. If you smell burning, see scorch marks or the breaker trips again, stop using it and unplug it. Do not keep re-running cycles on a dryer that will not heat. Call a technician.
Is replacing the element worth it?
Usually, if the dryer is in decent shape and the vent is clear. Past about fifteen years, compare the estimate to replacement value, as one parts guide advises. Washing Machine Repair Shreveport will give a free estimate for your Shreveport dryer and tell you honestly if the repair is not worth it.
